More shapes

Let’s draw some more shapes:

import "tagtiles.esp"

main = (
  drawShape (Cell (3, 4)) yellow;
  drawShape (Rect (1, 11) (2, 2)) green;
  drawShape (Line (1, 1) (12, 1)) red
)

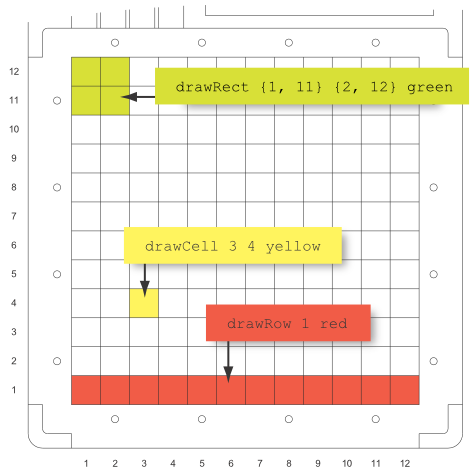

If you run this code, you will get the following result:

Let’s have a look at these shapes:

`Cell (x, y)`		The cell at position (x,y)
`Rect (x, y) (w, h)`		A rectangle at position (x,y), with width w and height h.
`Line (x1,y1) (x2, y2)`		A line from (x1, y1) to (x2, y2).

Exercise

Write a program that shows a nice drawing on the TagTiles board. Seperate multiple commands with a semicolon (;), as shown above in the code example.
